Start with the line layout, not the catalog price

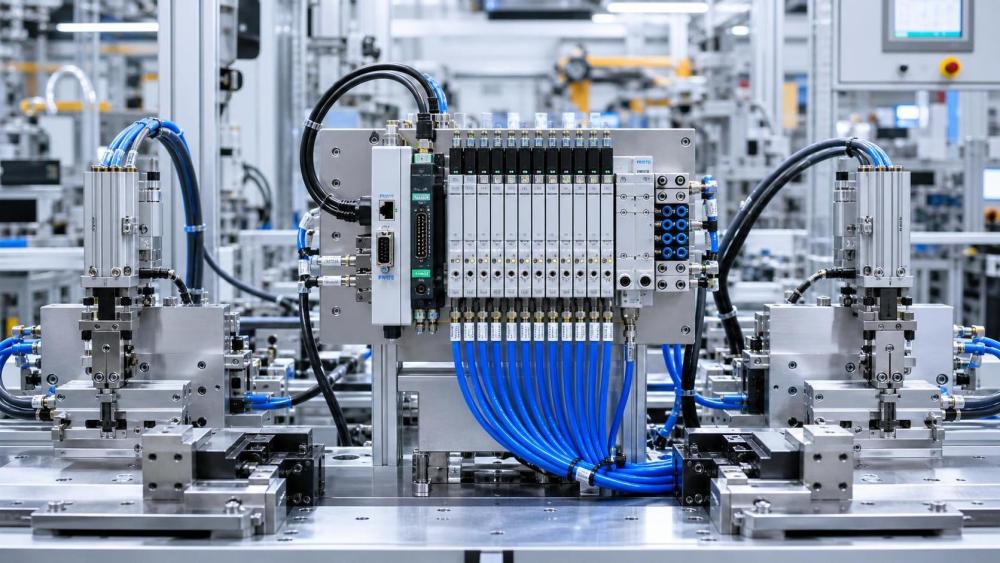

If you are comparing pneumatic valve islands for an automated assembly line, the quoted unit price is usually the least useful number on the page. What drives pneumatic valve islands price is the way the island has to behave inside the machine: how many actuators it controls, how fast the cycle runs, how much space is available, how the PLC communicates, and how painful downtime becomes when one valve fails.

A low-cost island can turn expensive once you add fieldbus modules, custom manifold sections, extra I/O, pressure regulation, and the labor needed to wire and debug it. On the other hand, a higher initial quote may reduce cabinet work, tubing length, commissioning time, and spare-parts complexity. For procurement, the practical job is to separate real cost drivers from quote noise before supplier comparison starts.

Use this checklist the same way experienced buyers do: confirm the configuration first, then test the hidden cost layers, then challenge anything in the offer that looks cheap because something has been left out.

Check what is actually included in the island assembly

Two quotes can both say “valve island” and still describe very different scopes. One may include only the valve stack. Another may include the manifold, end plates, fieldbus node, electrical connectors, blanking plates, pressure zones, mounting hardware, and diagnostics.

Before comparing price, ask for an itemized build sheet and check these points:

• Number of valve stations and whether all are populated
• Valve function at each station: 2/2, 3/2, 5/2, 5/3, single-solenoid, double-solenoid
• Electrical interface module and protocol
• Integrated regulators, soft-start units, shutoff modules, or exhaust components
• Port size, fitting type, and whether fittings are included
• Manual overrides, LED indication, and diagnostic capability

A quote that looks lower because it excludes connectors, cables, or bus modules is not lower in any meaningful purchasing sense. It is incomplete.

Valve count changes price fast, but mixed valve functions change it faster

The number of stations is the obvious driver, but station complexity matters just as much. Assembly lines rarely use identical outputs across the whole machine. Grippers, stoppers, blow-off circuits, reject gates, and vacuum-related functions often need different valve types or different flow behavior.

This is where buyers get caught. They budget from a basic valve count, then the machine builder adds special functions and the island price moves well beyond the early estimate. Ask engineering for the final I/O list and map every actuator function to the required valve behavior before RFQ release. If that mapping is not done yet, the quote should be treated as provisional even when the supplier calls it standard.

Do not ignore communication protocol costs

A basic island with hardwiring is one thing. An island that must sit on EtherNet/IP, PROFINET, EtherCAT, or another industrial network is another. The communication node often accounts for a noticeable share of the total package price, especially when higher-level diagnostics or distributed I/O expansion are required.

There is no universal “best” protocol cost. Price depends on the PLC environment already used on the line, the diagnostic expectations, and whether the maintenance team wants one network standard across the plant. The mistake is buying a cheaper node that introduces extra gateways, separate spares, or longer troubleshooting time later.

For each supplier quote, verify the exact protocol card, supported topology, address configuration method, and whether any software licenses or accessories are needed to bring the island online.

Manifold design can raise both hardware cost and installation savings

Custom manifold layout is one of the biggest reasons prices vary. Buyers often see custom as a pure premium, but that is only half the story. A well-configured island can reduce tubing runs, simplify wiring, improve access, and keep the pneumatic architecture cleaner around tight assembly fixtures.

Ask three practical questions:

1. Will the island be mounted centrally or close to actuators?
2. Does the layout need separate pressure zones for different functions?
3. Can future stations be added without replacing the full manifold?

An expandable manifold may cost more now and still be the better buy if the line design is expected to change. If the machine is stable and repeatable across many builds, a fixed configuration may control cost better.

Flow, pressure, and response expectations should be tied to the actual cylinders

Procurement gets cleaner once the pneumatic side is translated into application demand. Oversized valves increase price without adding value. Undersized valves create slow actuation, pressure drop, inconsistent motion, and lost cycle time. That cost usually appears later as debugging hours, quality variation, or pressure tweaks across shifts.

You do not need to become the machine designer, but you do need these inputs from engineering:

• Cylinder bore and stroke
• Required cycle speed
• Available supply pressure
• Whether multiple actuators switch at the same time
• Any need for vacuum, blow-off, or controlled exhaust

Without that, suppliers will quote on assumptions, and assumptions are where pricing gaps begin.

Look closely at maintenance access and replacement method

This point is often missed because it does not show up well on a quotation sheet. Some valve islands allow quick valve replacement with limited disturbance to neighboring stations. Others require more disassembly, more wiring work, or longer machine stoppage.

For a high-throughput assembly line, that difference matters. A lower initial purchase price can be wiped out by one awkward replacement during production. Ask maintenance or the integrator to review the service method before award. What you want to know is simple: how many steps, how much access space, and what happens to the rest of the island when one valve or one solenoid fails.

Environmental conditions quietly change the quote

Not every assembly line runs in the same air quality or ambient condition. Dust, washdown exposure, oil mist, vibration, temperature swings, and enclosure constraints can all push the island specification upward. That may show up as different sealing, higher protection level, better connector design, or a mounting approach better suited to vibration.

The problem is not paying more for a harsher environment. The problem is paying for a standard assembly and then field-modifying the installation because the original specification was too light. Put the actual operating environment into the RFQ. If the island sits inside a cabinet, say so. If it sits on the machine frame near moving tooling, say that instead.

Spare parts strategy affects the real buying cost

The best purchasing decision is rarely the lowest line-item quote. It is the one that keeps spare holdings under control without exposing production to long lead-time risk. Valve islands create a spares question at several levels: whole island, valve slice, solenoid coil, bus node, cable set, fittings, and pressure accessories.

If a supplier offers an attractive initial price but the replacement parts are fragmented or model-specific, your MRO cost can climb later. Standardization across multiple machines often matters more than shaving a small percentage off one project quote.

Use this quote review table before comparing suppliers

Common quote mistakes that distort pneumatic valve islands price

A few errors show up again and again in procurement reviews:

• Comparing one supplier’s complete assembly against another supplier’s base manifold only
• Ignoring protocol and commissioning requirements until controls review
• Assuming all stations need the same valve type
• Leaving future expansion out of the layout discussion
• Treating spare-parts availability as a separate issue after purchase
• Using old machine assumptions for a new line with different cycle and space limits

None of these are dramatic on their own. Together, they are usually the reason one “cheap” offer ends up costing more by the time the line is commissioned.

A practical buying sequence for procurement teams

If the goal is better price control without slowing the project, follow the sequence that works in real sourcing:

1. Lock the actuator list and control functions with engineering.
2. Define network protocol and diagnostic expectations with controls.
3. State mounting location and environmental conditions in the RFQ.
4. Request itemized quotations, not lump-sum island pricing.
5. Review service method and spare-parts structure before supplier selection.
6. Only then compare commercial terms, lead time, and total package cost.

That sequence keeps the discussion where it belongs. In automated assembly lines, pneumatic valve islands price is not just a component number. It is the cost of getting air control, communication, maintainability, and uptime aligned in one package. Buyers who define those conditions clearly usually get better quotes, cleaner installs, and fewer surprises after the PO is placed.
